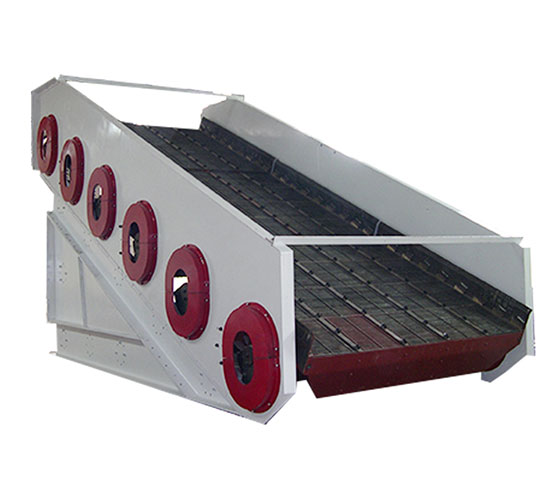

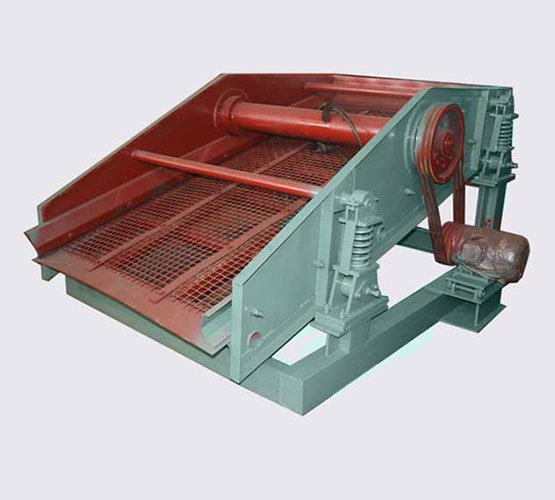

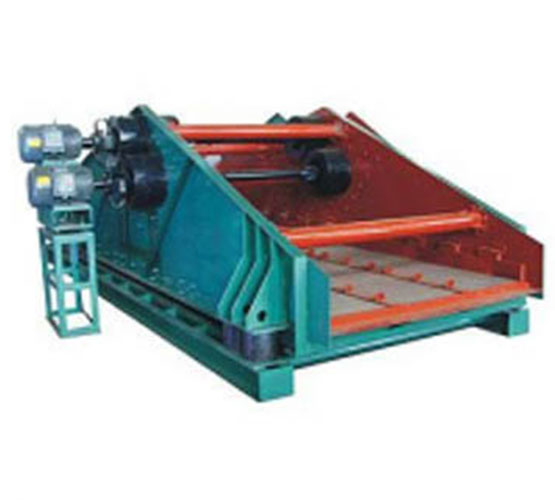

With a circular movement track this series of vibrating screen is suitable for dry classification of the materials with medium grain sizes with such advantages as simple installation convenient maintenance reliable operation high screening efficiency and good screening ability etc.
|
Model |
Working area (m2) |
Screen layers |
Max feed particle size (mm) |
Capacity (t/h) |
Mesh size |
Double amplitude |
Frequency (r/min) |
Motor |
Weight (kg) |
|
|
Model |
Power (kw) |
|||||||||
|
ZD0918 |
1.6 |
1 |
60 |
10-30 |
1-25 |
6 |
1000 |
Y100L1-4 |
2.2 |
553 |
|
ZD20918 |
1.6 |
2 |
50 |
10-30 |
1-25 |
6 |
1000 |
Y100L1-4 |
2.2 |
702 |
|
ZD1224 |
2.9 |
1 |
100 |
70-210 |
6-40 |
0-7 |
1000 |
Y112M-4 |
4 |
1130 |
|
ZD21224 |
2.9 |
2 |
100 |
70-210 |
6-40 |
0-7 |
850 |
Y112M-4 |
4 |
1545 |
|
ZD1530 |
4.5 |
1 |
100 |
90-270 |
6-50 |
6-7 |
850 |
Y132S-4 |
5.5 |
1650 |
|
ZD21530 |
4.5 |
2 |
100 |
90-270 |
6-50 |
6-7 |
850 |
Y132S-4 |
5.5 |
2260 |
|
ZD1540 |
6 |
1 |
100 |
90-270 |
6-50 |
7 |
850 |
Y132M-4 |
7.5 |
2070 |
|
ZD21540 |
6 |
2 |
100 |
90-270 |
6-50 |
7 |
850 |
Y132M-4 |
7.5 |
2850 |
|
ZD1836 |
6.5 |
1 |
150 |
100-300 |
6-50 |
7 |
850 |
Y160M-4 |
11 |
1960 |
|
ZD21836 |
6.5 |
2 |
150 |
100-300 |
6-50 |
7 |
850 |
Y160M-4 |
11 |
2840 |
|
ZD2160 |
12 |
1 |
150 |
240-540 |
10-50 |
8 |
900 |
Y180L-4 |
22 |
6529 |
