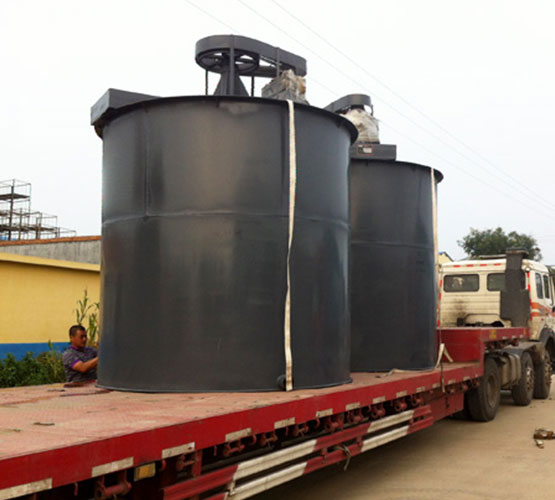

This single impeller agitating tank is the most commonly used ordinary agitating tank at present. The impeller is located at the bottom opening of the cycling cylinder taking the ore pulp and chemical reagent into the cycling cylinder with a suction orifice for agitating.
|
Model |
Internal size of trough (mm) |
Effective volume (m³) |
Stirrer |
Motor |
Dimension(mm) |
Weight (kg) |
||||
|
diameter |
Heigh |
diameter (mm) |
Speed(r/min) |
Model |
Power (kw) |
Length |
Height |
|||
|
RJ05 |
500 |
500 |
0.078 |
150 |
690 |
Y80M2-4 |
0.75 |
720 |
874 |
110 |
|
RJ07 |
750 |
750 |
0.26 |
240 |
530 |
Y90L-4 |
1.5 |
939 |
1241 |
228 |
|
RJ10 |
1000 |
1000 |
0.58 |
240 |
530 |
Y90L-4 |
1.5 |
1080 |
1665 |
350 |
|
RJ12 |
1200 |
1200 |
1.14 |
400 |
320 |
Y132S-4 |
3 |
1540 |
1858 |
765 |
|
RJ15 |
1500 |
1500 |
2.2 |
400 |
320 |
Y132S-4 |
3 |
1690 |
2171 |
1360 |
|
RJ20 |
2000 |
2000 |
5.5 |
550 |
230 |
Y132M2-4 |
5.5 |
2381 |
3046 |
1655 |
|
RJ25 |
2500 |
2500 |
11 |
625 |
230 |
Y160M-4 |
7.5 |
2881 |
3546 |
2766 |
|
RJ30 |
3000 |
3000 |
19.1 |
900 |
210 |
Y225S-8 |
18.5 |
3266 |
4325 |
4296 |
