    Jig

    【Introduction】: An equipment realizes the separation of light and heavy mineral by the different sedimentation speed in vertical alternating water flow.

    【Capacity】: 1~25t/h.

    【Improvement】: The cone slide valve is adopted; the failure rate is reduced by 80%; low energy consumption; the separation of different material, improvement of the processing capacity by more than 35%.

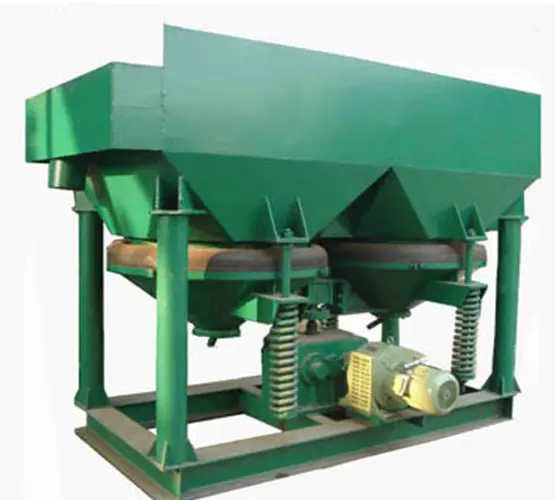

    This product is side(upper)movable rectangular jig. With the features of the stable slice, good separation result and convenient maintenance with the diaphragm and drive unit installed at one side of the jigging chamber. It is widely used for recovering high-grade ore with fine grain size in the gold ore dressing plant, separating rough concentrate in the gravel mining plant and recovering the monomer coarse gold in advance by being arranged in the grinding classification loop in the rock gold dressing plant.

    The improved type (A) adopted the design of the water diversion valve. The feeding water is distributed by the linkage of the drive unit. With unique and advanced structure, it is realized reasonable water compensation.


    1. Stroke and jig frequency are easy to adjust;

    2. The advanced frequency conversion speed control technology is convenient to operate and manage;

    3. Small cover area, high processing capacity per unit area.

    Sawtooth wave jig is revised and manufactured, based on the stratified theory and the adequate analysis of other conventional jigs. The jigging pulsation curve----produced by sawtooth wave jig----is in the shape of sawtooth wave which makes upward water flow quicker than downward water flow. The feature that upward time is shorter than downward time solves the problem that time and action of upward/downward water flows. This breakthrough dramatically amplifies the loose degree and mitigates suction action, which facilitates precipitation of coarse ores and improves ore recovery rate.

    Model

    Size of supplying minerals (mm)

    Output(t/h)

    Washing times

    (r/min)

    Regulating limits of route(mm)

    Density of supplying mineral (%)

    Measure of water compensa-tion

    (t/h)

    Motor

    Dimension

    (L×W×H) (mm)

    Weight

    (kg)

    Model

    Power

    (kw)

    Double dippers

    300×450

    1~12

    2.1~6.1

    322~420

    0~25.3

    15~50

    2.1~3.8

    Y90S-4

    1.1

    1290×1270×1750

    745

    300×450A

    1~12

    2.1~6.1

    322~420

    0~25.3

    15~50

    2.1~3.8

    Y90S-4

    1.1

    1230×1270×1740

    550

    Single dipper

    300×450

    ≦10

    2~5

    300

    0~18

    15~50

    1~2

    Y90S-6

    1.1

    650×1030×1588

    320

    400×600A

    ≦10

    2~5

    300

    0~18

    15~50

    2.1~5.4

    Y90L-6

    1.1

    792×1237×1894

    400

    400×600

    ≦10

    2~5

    76.7~767

    0~18

    15~50

    2.1~5.4

    TZT222-4

    1.5

    996×1263×1789

    500

    600×900

    ≦10

    2~5

    300

    0~25

    15~50

    2.1~6

    Y112M-6

    2.2

    1638×1230×2148

    1400
