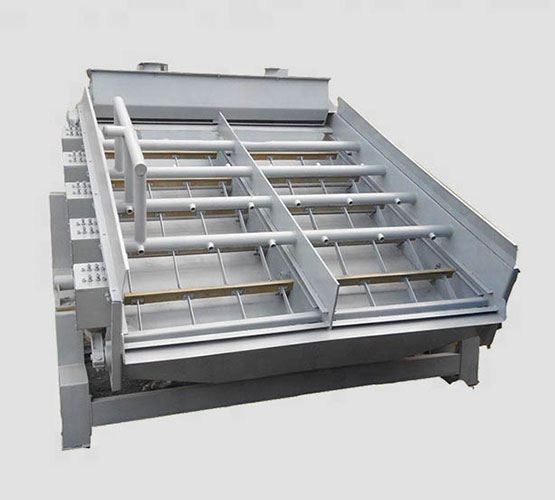

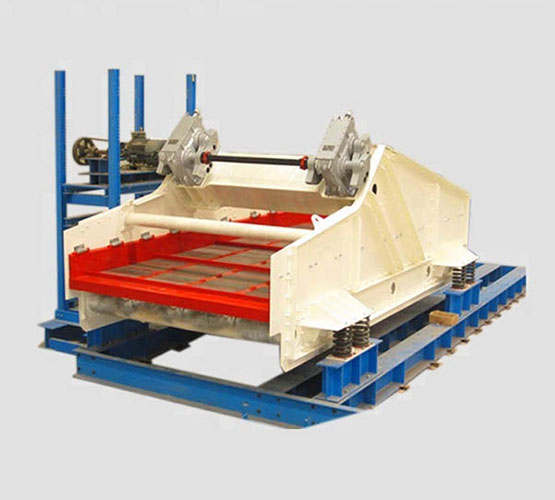

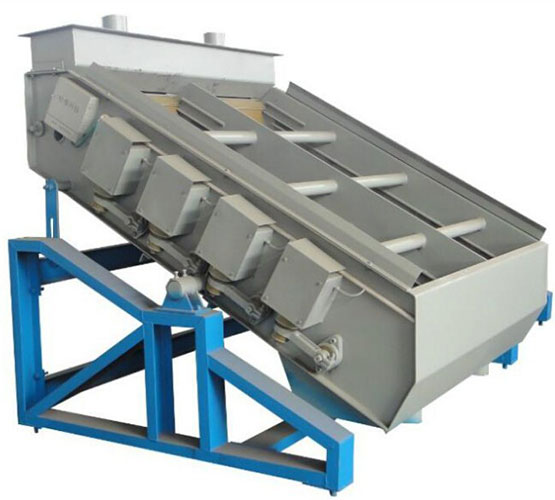

Fine-Mesh Vibrating Screen

1. High vibrating frequency, low amplitude, the sieve permeation rate is high.

2. Multiple feed, screen utilization rate is high and processing capacity is big.

3. Rubber spring support the screen frame making vibration isolation and sound absorption as well as low noise.

4. Low power consumption, classification and the screen surface is with high efficiency.

5. There are laminated stainless steel mesh and high polymer wear-resistant screen plate on the screen surface.


Model

Q’ty of feeding way

Screen size

(L×W) (mm)

Effective screening area (m²)

Separating particle size (mm)

Capacity (t/h)

Motor

Weight(kg)

Model

Power(kw)

GPS-900-3

3

900×700

1.66

0.045~2.0

2~16

Y90S-2

1.5

1100

GPS-1400-3

3

1400×700

2.58

0.045~2.0

8~25

Y100L-2

3.0

1500
