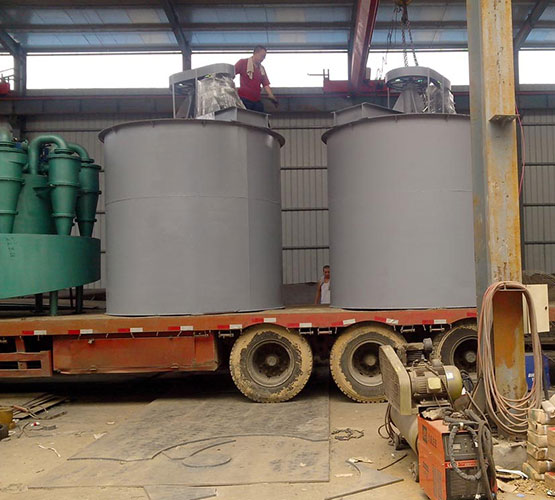

Cone-Bottom Agitator Tank
The ordinary cone-bottom agitation tank is a common agitating tank suitable for agitating the chemical reagent in the ore dressing plant, with uniquely designed impeller, uniform agitation and good mixing effect.
Email ([email protected]), we will reply to you within 24 hours
|
Model |
Effective capacity (m³) |
Impeller |
Motor |
Weight(kg) |
||
|
Rotating speed (r/min) |
Diameter(mm) |
Model |
Power(kw) |
|||
|
RJZ-750×750 |
0.26 |
530 |
240 |
Y100L-6 |
1.5 |
240 |
|
RJW-1000×1000 |
0.62 |
530 |
240 |
Y100L-6 |
1.5 |
680 |
|
RJW-1500×1500 |
2.38 |
320 |
400 |
Y132S-6 |
3 |
1375 |
|
RJW-2000×2000 |
5.0 |
230 |
550 |
Y132M2-6 |
5.5 |
2000 |
